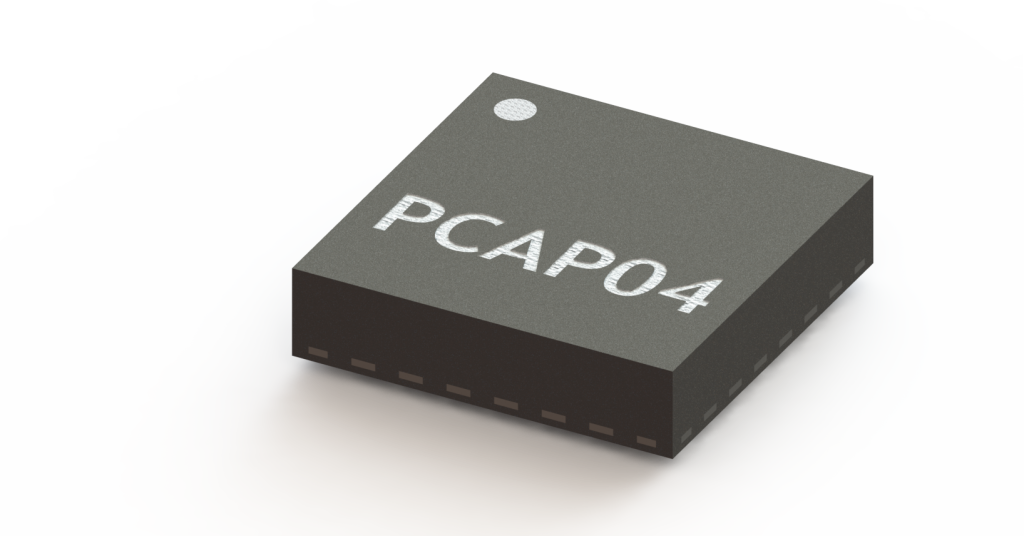

PCAP04 is a capacitance-to-digital converter (CDC) with integrated digital signal processor (DSP) for on-chip data post-processing. Its front end is based on the PICOCAP principle.
For more information on the PCAP04 or to download the datasheet please go to PCAP04 Capacitance-to-Digital Converter – ScioSense
Evaluation Software
Evaluation Software for ScioSense products. This software is intended to evaluate all functions of the desired product.
Note: Due to problems with Labview on latest hardware/OS we removed the download link for now. Please contact support@site_e630c2cf-27d3-4c5a-b919-0364804054fd in case you need the software. Please add information about your operating system and hardware (processor).
Additional package for AN000615. (PCa04 DLL – Library.zip) Includes automatic generation of calibration coefficients for use in a production line. Feeds 3rd order polynomial coefficients to the linearize_r01 dll.
