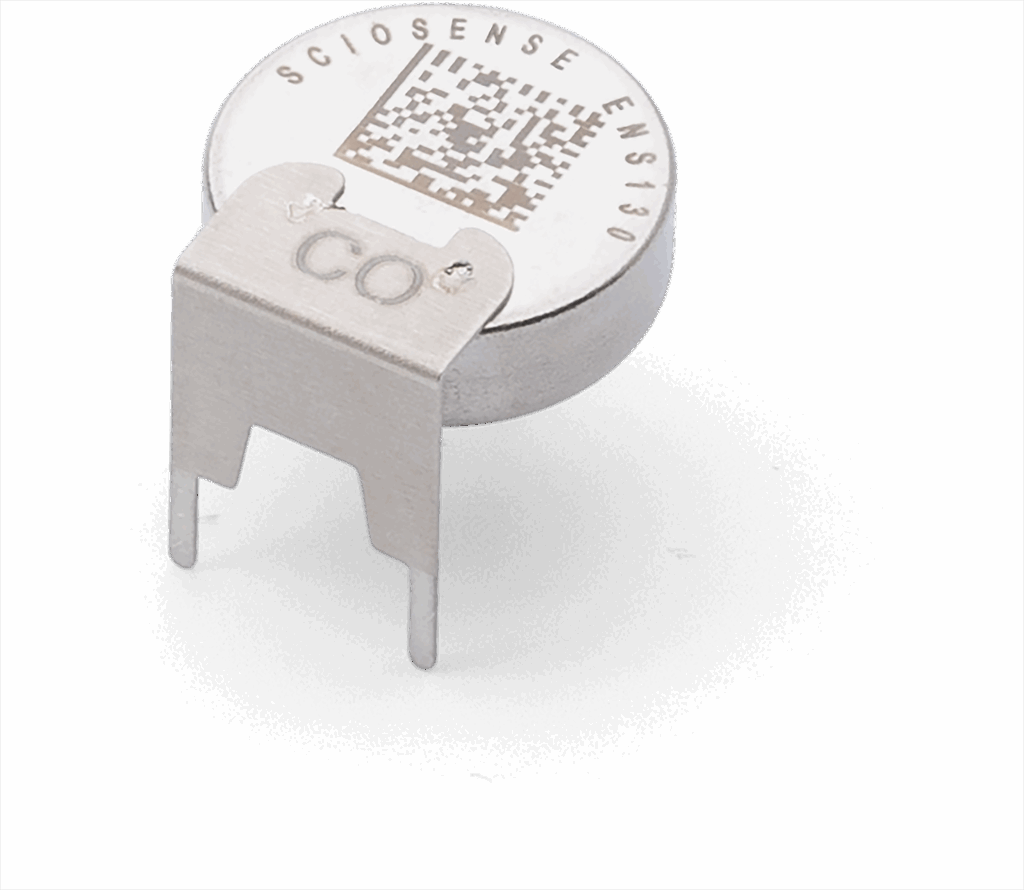

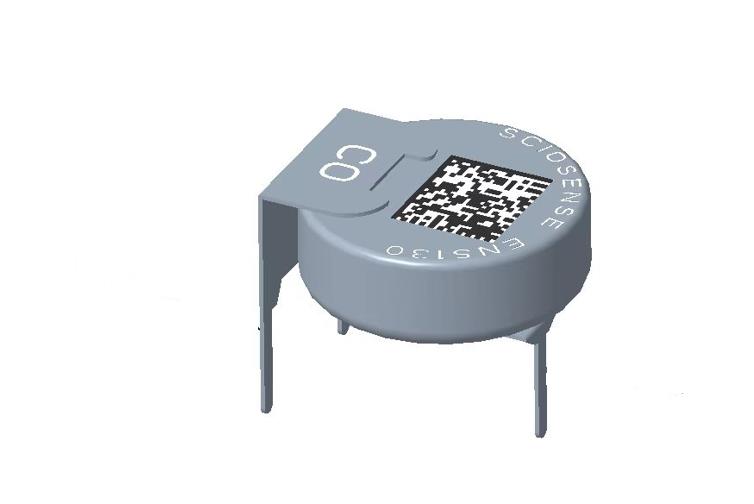

ENS130 CO Sensor

The ENS130 CO sensor provides accurate CO concentration
measurements in a compact form factor.
Its design makes it suitable for space-constrained
applications, including portable and small residential
CO detectors, as well as multi-sensor fire detectors.

Based on fuel cell technology, the ENS130 CO Sensor features low power consumption, fast response, high accuracy, and resistance to interference and poisoning. It operates across a wide temperature range. With sensor calibration, precise CO concentration measurements are achievable.

The ENS130’s reliable performance, high accuracy,
and extended service lifetime position it for use in various industries and applications focused on life protection.

The sensor is RoHS-compliant and meets the requirements of UL2034, UL2075, EN50291, and GB15322 standards.

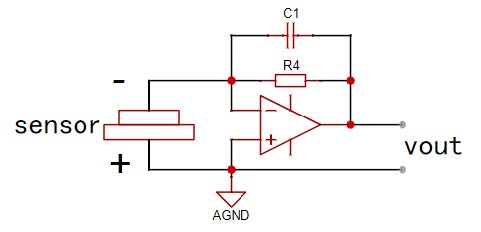

Basic Measuring Circuit ENS130 CO Sensor

ENS130 CO Sensor features and benefits

Features:

  • Small form factor
  • Electrode and structural design with anti-undershoot
  • Fast response, low power consumption,
    high accuracy
  • Wide temperature range

Benefits:

  • Lifetime: 10 years
  • Integration into compact devices
  • Suitable for form-factor critical applications
  • Reliable and precise CO concentration
    measurements
  • Minimizes false alarms or inaccurate readings
    from other gases or environmental factors
  • Maintains sensor performance and longevity even when exposed to certain contaminants

Product properties

  • Measurement Range 0-5000 ppm
  • Response Time (T90) <60s
  • Recovery Time (T10) <60s
  • Operating temperature [°C] -40 to +70
  • Operating humidity 10%-90%RH
  • Weight 3 gr

Applications

Download documents

Related products

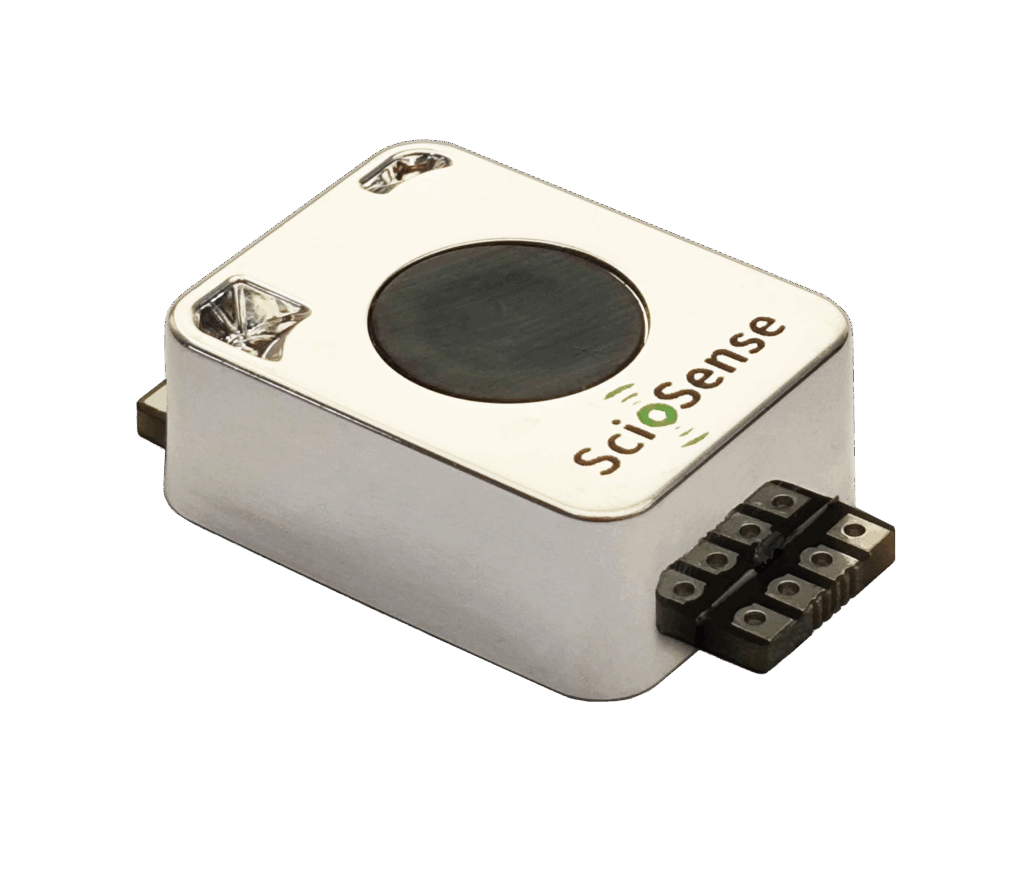

ENS190 NDIR CO2 Sensor
